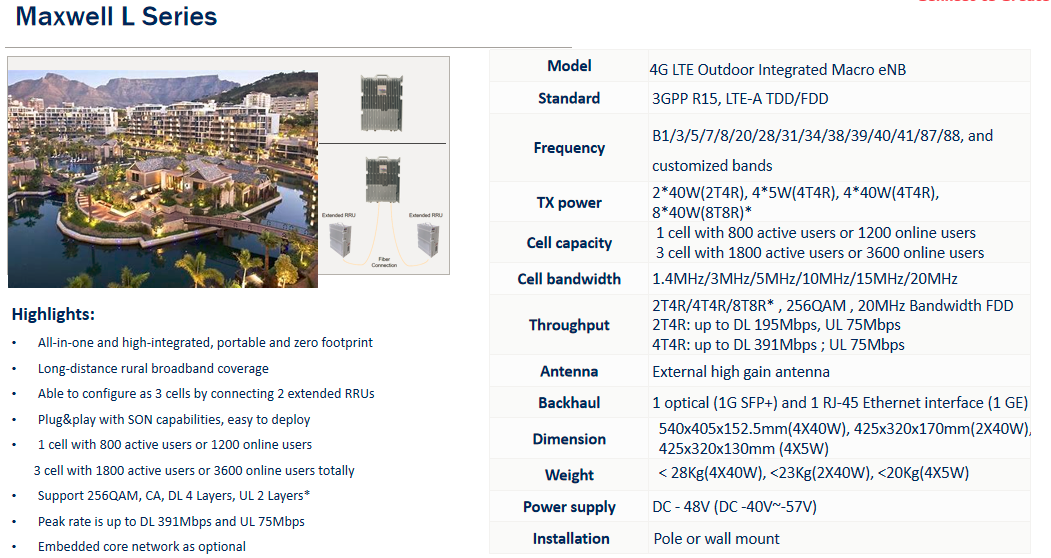

Maxwell L Series
Category:
4G LTE Outdoor Integrated Macro eNB
Description
Highlights:
● All-in-one and high-integrated, portable and zero footprint
● Long-distance rural broadband coverage
● Able to configure as 3 cells by connecting 2 extended RRUs
● Plug&play with SON capabilities, easy to deploy
● 600 online users ，or 400 active users
● Peak rate is up to DL 300Mbps and UL 75Mbps
● Embedded core network as optional
|
Model |
4G LTE Outdoor Integrated Macro eNB |
|
Standard |
3GPP R15, LTE-A TDD/FDD |
|
Frequency |
B1/3/5/7/8/20/28/31/34/38/39/40/41/87/88, and customized bands |
|
TX power |
2*40W(2T4R), 4*40W(4T4R), 8*40W(8T8R)* |
|
Cell capacity |
1 cell with 800 active users or 1200 online users 3 cell with 1800 active users or 3600 online users |
|
Cell bandwidth |
1.4MHz/3MHz/5MHz/10MHz/15MHz/20MHz |
|
Throughput |
2T4R/4T4R/8T8R* , 256QAM , 20MHz Bandwidth FDD 2T4R: up to DL 195Mbps, UL 75Mbps 4T4R: up to DL 391Mbps ; UL 75Mbps |
|
Antenna |
External high gain antenna |
|
Backhaul |
1 optical (1G SFP+) and 1 RJ-45 Ethernet interface (1 GE) |
|
Dimension |
540x405x152.5mm(4T4R), 425x320x170mm(2T4R) |
|
Weight |
< 28Kg(4T4R), <23Kg(2T4R) |
|
Power supply |
DC - 48V (DC -40V~-57V) |
|
Installation |
Pole or wall mount |
