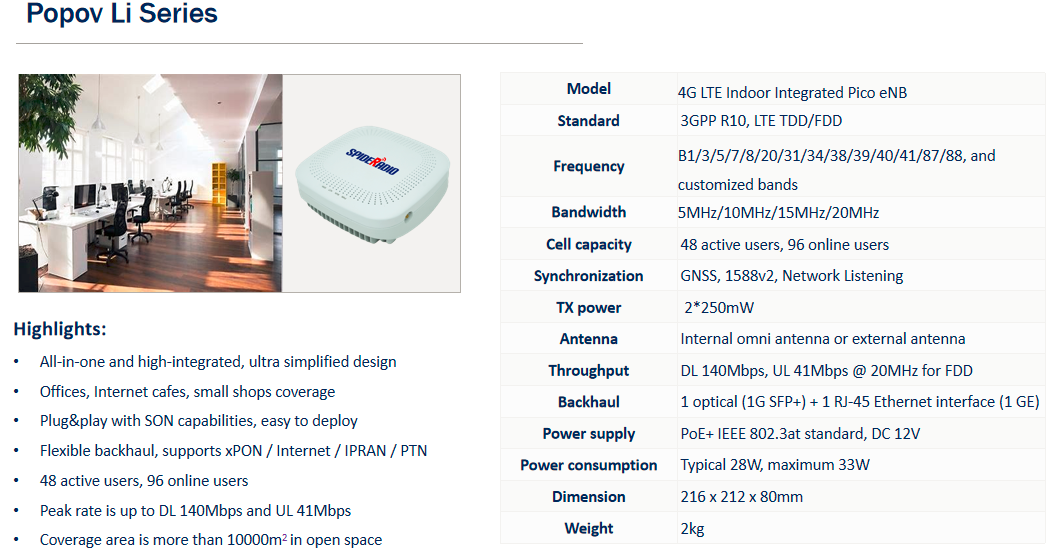

Popov Li Series
Category:
4G LTE Indoor Integrated Femto eNB
Description
Highlights:
● All-in-one and high-integrated, ultra simplified design
● Offices, Internet cafes, small shops coverage
● Plug&play with SON capabilities, easy to deploy
● Flexible backhaul, supports xPON / Internet / IPRAN / PTN
● 48 active users, 96 online users
● Peak rate is up to DL 140Mbps and UL 41Mbps
● Coverage area is more than 10000m2 in open space
|
Model |
4G LTE Indoor Integrated Pico eNB |
|
Standard |
3GPP R12, LTE TDD/FDD |
|
Frequency |
B1/3/5/7/8/20/31/34/38/39/40/41/87/88, and customized bands |
|
Bandwidth |
5MHz/10MHz/15MHz/20MHz |
|
Cell capacity |
48 active users, 96 online users |
|
Synchronization |
GNSS, Network Listening |
|
TX power |
2*250mW |
|
Antenna |
Internal omni antenna or external antenna |
|
Throughput |
DL 140Mbps, UL 41Mbps @ 20MHz for FDD |
|
Backhaul |
1 optical (1G SFP+) + 1 RJ-45 Ethernet interface (1 GE) |
|
Power supply |
PoE+ IEEE 802.3at standard, DC 12V |
|
Power consumption |
Typical 20W, maximum 30W |
|
Dimension |
220x 220 x 81.5mm |
|
Weight |
1.5kg |
