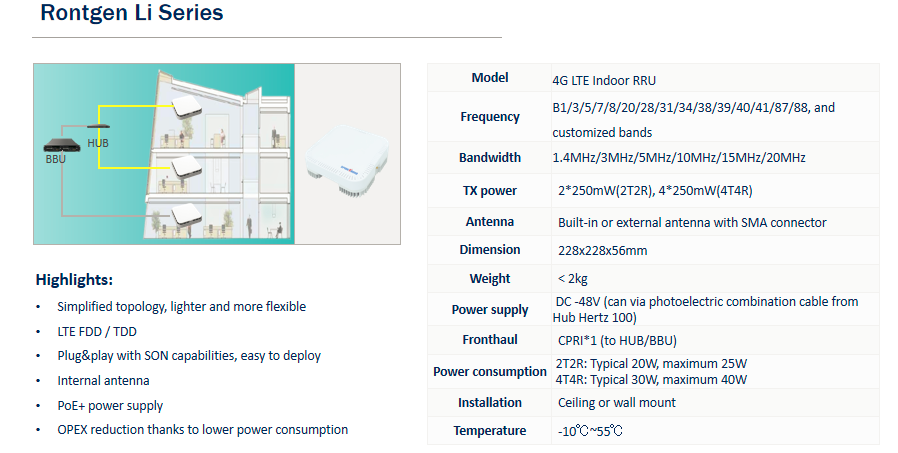

PRODUCT
Description
Highlights:
● Simplified topology, lighter and more flexible
● LTE FDD / TDD
● Plug&play with SON capabilities, easy to deploy
● nternal antenna
● PoE+ power supply
● OPEX reduction thanks to lower power consumption
|
Model |
4G LTE Indoor RRU |
|
Frequency |
B1/3/5/7/8/20/28/31/34/38/39/40/41/87/88, and customized bands |
|
Bandwidth |
1.4MHz/3MHz/5MHz/10MHz/15MHz/20MHz |
|
TX power |
2*250mW(2T2R), 4*250mW(4T4R) |
|
Antenna |
Built-in or external antenna with SMA connector |
|
Dimension |
228x228x56mm |
|
Weight |
< 2kg |
|
Power supply |
DC -48V (can via photoelectric combination cable from Hub Hertz 100) |
|
Fronthaul |
CPRI*1 (to HUB/BBU) |
|
Power consumption |
2T2R: Typical 20W, maximum 25W 4T4R: Typical 30W, maximum 40W |
|
Installation |
Ceiling or wall mount |
|
Temperature |
-10℃~55℃ |
